Technical Data:
About Working mode:
Momentary: Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle: Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .

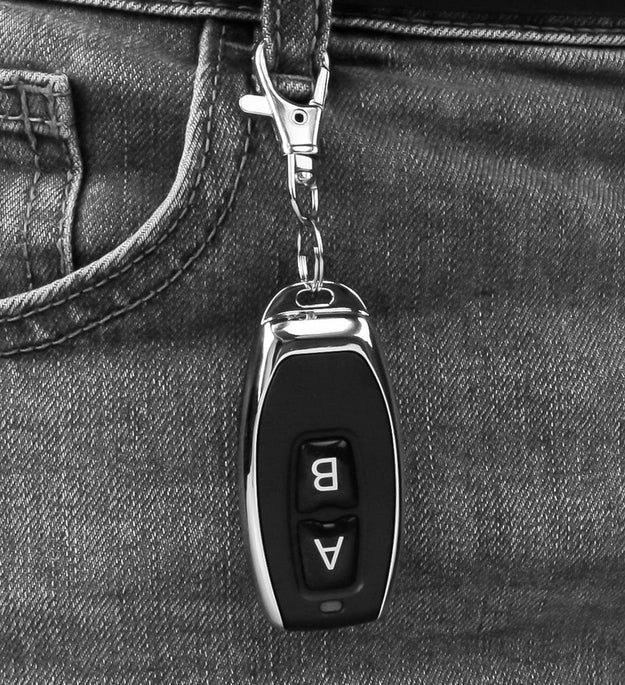

Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Clearing the code :
Learning the code :(momentary)

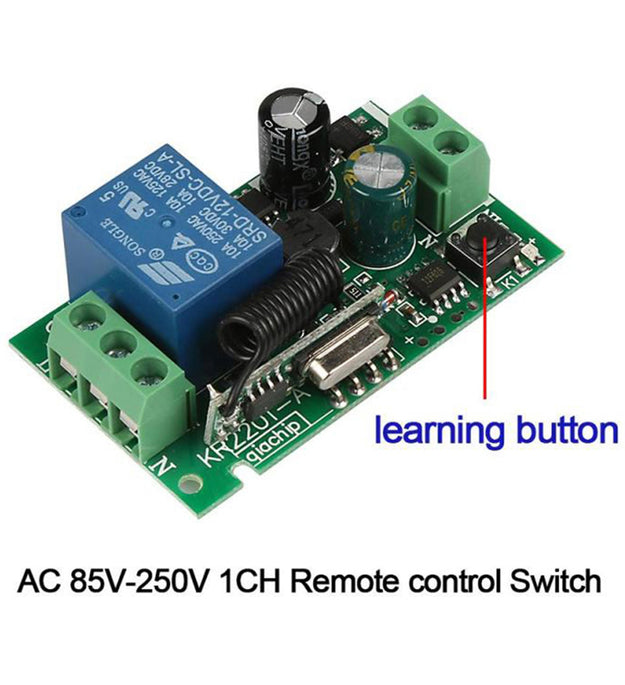

Press the learning key(on the Receiver) once time, the LED (on the Receiver)will blink one time. When the LED is on, press the button of the remote control(You want to let it learn), the LED (on the Receiver)will blink for 3 times and then turn off, Learning to succeed.
Learning the code : ( Toggle )
Press the learning key(on the Receiver) 2 times, the LED (on the Receiver)will blink 2 times. When the LED is on, press the button of the remote control(You want to let it learn), the LED (on the Receiver)will blink for 3 times and then turn off, Learning to succeed.
